High-Capacity Electric Sauna Heater for Large Home Saunas

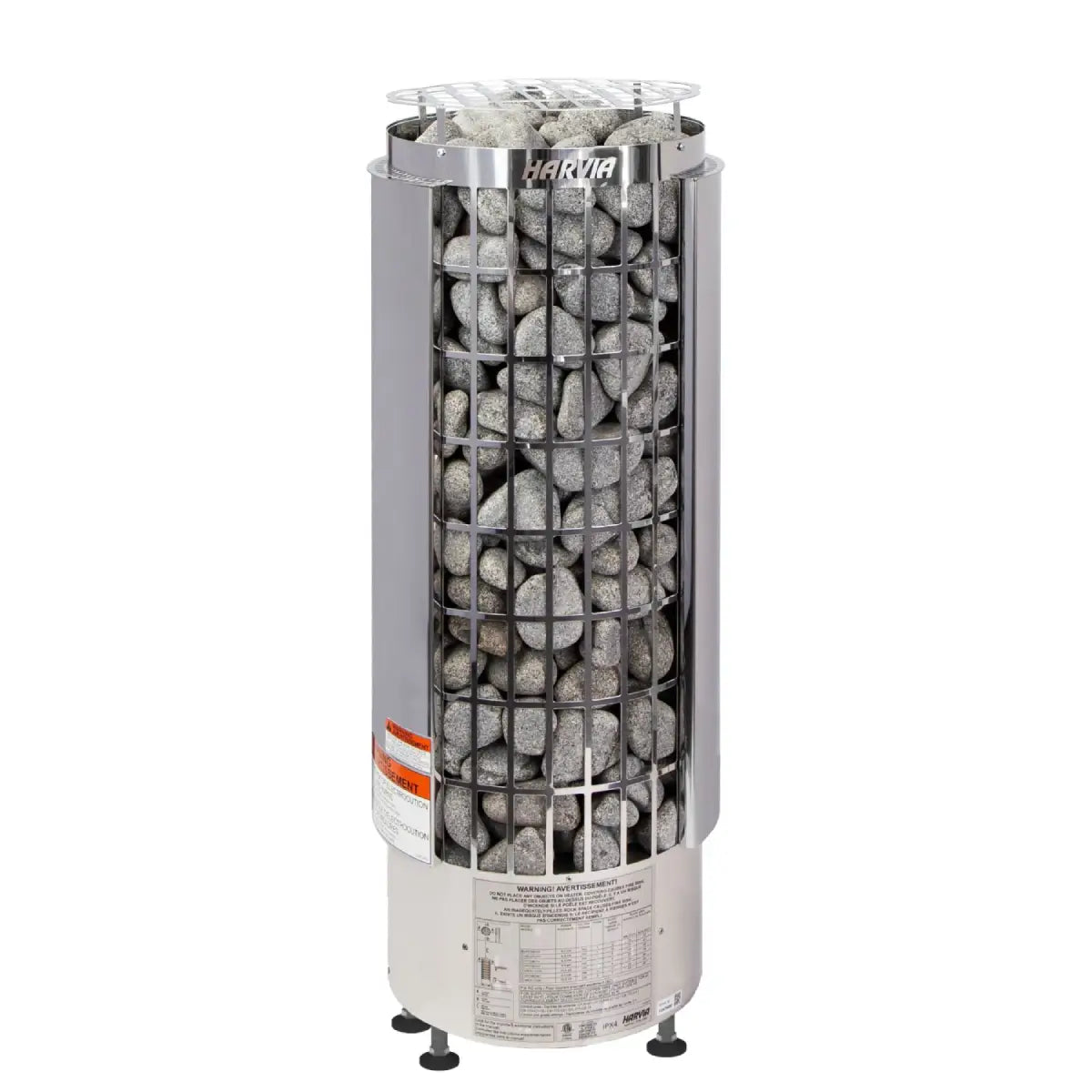

The Harvia Cilindro PC110E is a floor-standing, stainless steel electric sauna heater engineered for large residential sauna rooms. With an elegant open-front cylinder design and a 270 lb stone capacity, it provides a soft, rich steam experience that mimics a traditional wood-burning sauna — with the convenience of electric power.
Built in Finland, the PC110E is crafted for longevity and performance. Its partially apertured outer shell lets bathers enjoy full steam by throwing water on the side or top of the stone column. Ideal for corner or side-wall installation, this heater heats rooms from 317 to 636 cubic feet and is UL listed for safe residential use.
Key Features
Model: Harvia Cilindro PC110E
Power Output: 10.5 kW
Voltage Options:
240V / 1-phase
208V / 3-phase
Recommended Room Volume: 317–636 cubic feet
Stone Capacity: 270 lbs (stones sold separately)
Construction: Stainless steel body and heating elements
Installation: Floor model, corner or side-wall placement
Dimensions: 15½″W x 15″D x 45¼″H
Heater Weight: 50 lbs (excluding stones)
Made in Finland
UL Listed
Control Requirement (based on electrical configuration)
240V / 1-phase (PC110E-U1) Requires:
Digital Control: CX30 control unit
Contactors: FX404
Compatible Relay Box: F-2T
208V / 3-phase (PC110E-U3) Requires:
Digital Control: CX30 control unit
Contactors: FX503
Compatible Relay Box: F-2T
Note: Manual control is not available or recommended for this model.
Electrical Requirements
Electrical Spec
240V / 1-phase (PC110E-U1)
208V / 3-phase (PC110E-U3)
Power Output
10,500 Watts
10,500 Watts
Amperage
43.75 A
29.2 A
Main Breaker Size
50A
40A
Wire Size to Sub-panel
(2) #6 + Ground
(3) #8 + Ground
Sub-panel Breaker
(2) 40A
N/A
Wire Size from Sub-panel
(4) #8 + Neutral + Ground
(3) #8 + Neutral + Ground
Why Choose the Harvia PC110E?
Soft, powerful steam with 270 lbs of stone
Premium electric heater for home saunas up to 636 cu. ft.
High-end Finnish construction
Compatible with Xenio digital controls for precise temperature and timer management
